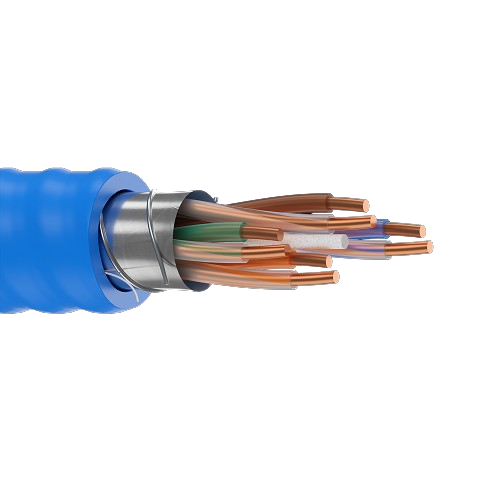

Belden 2183P 23 AWG 4 Pair Solid Bare Copper 300V 4K UHD Media Cable

Description:-

4 Pair 23 AWG Solid Bare Copper Conductors, FEP Insulation, F/UTP, Helical TC Drain, Ripcord, Flamarrest Jacket, Plenum CMP-LP (0.6A)

Insulation:-

• Material: FEP - Fluorinated Ethylene Propylene
• Nom. Thickness: 0.010 in (0.25 mm)

Outer Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 26 AWG (Solid) TC - Tinned Copper

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.018 in (0.46 mm)
• Nom. Diameter: 0.270 in
• Overall Cable Diameter (Nominal): 0.270 in

Standards:-

• UL Voltage Rating: 300 V
• Operating Temperature Range: -20°C to +90°C

Applications:-

• HDBaseT, Full 5-Play, 4K (UHD/DCI), POH, POE

Specifications:-

• Size (AWG): 23
• No. of Pair: 4
• Stranding: Solid
• Conductor Material: BC - Bare Copper
• Part Number: 2183P
