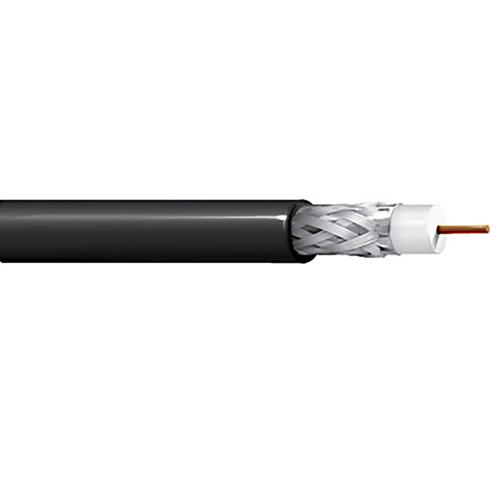

Belden 1829R 18 AWG 1 Conductor Solid Bare Copper Covered Steel 300V Broadband Coax Cable

Description:-

Broadband Coax, Series 6, 18 AWG Solid Bare Copper Covered Steel Conductor, PE Insulation, Foil + 60% Aluminum Braid Shield, PVC Jacket, CMR.

Insulation:-

• Material: PE - Polyethylene (Foam)
• Nom. Insulation Diameter: 0.18 in (4.6 mm)
• Insulation Table Notes: Gas Injected

Outer Shield:-

• Layer: 1
• Shield Type: Tape
• Material: Tri-Laminate (Alum+Poly+Alum)
• Material Trade Name: Duofoil
• Coverage: 100%

• Layer: 2
• Shield Type: Braid
• Material: Aluminum
• Coverage: 60%

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.275 in (6.99 mm)
• Overall Cable Diameter (Nominal): 0.275 in (6.99 mm)

Standards:-

• UL Voltage Rating: 300 V RMS
• Nominal Characteristic Impedance: 75 Ohm
• Operating Temperature Range: -40°C To +80°C

Applications:-

• Broadband, Cable Television (CATV), RF drop cable, Direct Broadcast Satellite (DBS), Over-The-Air (OTA) antennas

Specifications:-

• Size (AWG): 18
• No. of Conductor: 1
• Stranding: Solid
• Series Type: 6
• Nominal Diameter: 0.04 in
• Conductor Material: BCCS - Bare Copper Covered Steel
• Part Number: 1829R
