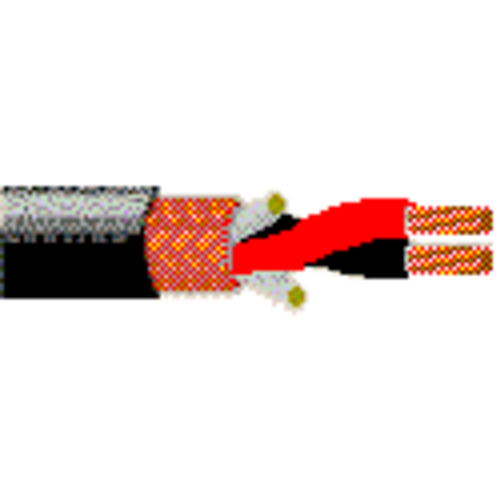

Belden 1813A 24 AWG 2 Conductor 27x38 Stranding Bare Copper 30V Audio Cable

Description:-

Audio Cable, 1-24 AWG stranded high-conductivity bare copper pair with PVC insulation, +90% bare copper spiral shield, PVC jacket.

Insulation:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.017 in (0.43 mm)
• Nom. Insulation Diameter: 0.059 in mm

Outer Shield:-

• Shield Type: Spiral Serve / Screen
• Material: Bare Copper (BC)
• Coverage [%]: 90%

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.055 in (1.4 mm)
• Nom. Diameter: 0.236 in
• Overall Cable Diameter (Nominal): 0.236 in

Standards:-

• UL Voltage Rating: 30 V
• Operating Temperature Range: -30°C To +60°C

Applications:-

• Multi-channel interconnect between audio equipment such as microphones, speakers, amplifiers, mixing consoles; Live events or studio sound; Analog audio

Specifications:-

• Size (AWG): 24
• No. of Conductor: 2
• Stranding: 27x38
• Conductor Material: BC - Bare Copper (High Conductivity)
• Part Number: 1813A
