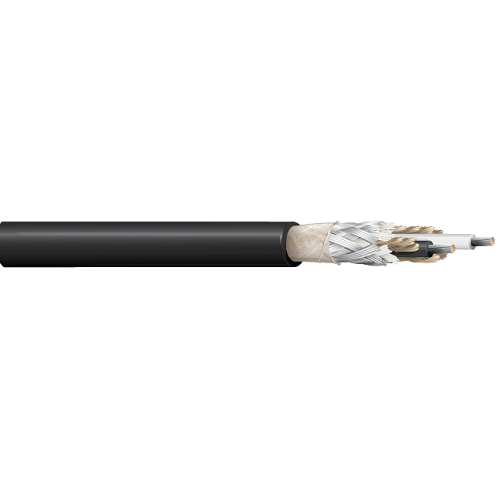

Belden 1776 Cable 20 AWG 2 Conductors Microphone Rugged Low Impedance Stranded 19x32 EPDM Jacket Cable

Belden 1776 Cable 20 AWG 2 Conductors Microphone Rugged Low Impedance Stranded 19x32 EPDM Jacket Cable

Description:
• 20 AWG stranded (19x32) high-strength tinned alloy conductors, EPDM rubber insulation, rayon braid, high-strength tinned alloy braid shield (85% coverage), cotton wrap, EPDM jacket.

Insulation:
• Material: EPDM - Ethylene Propylene Diene Monomer Rubber
• Wall Thickness (in.): 0.023
• Diameter (in.): 0.083

Outer Jacket:
• Material: EPDM - Ethylene Propylene Diene Monomer Rubber
• Nom. Wall Thickness (in.): 0.035

Mechanical Charactertistics (Overall):
• Operating Tempeature Range: -50°C To +90°C
• Non-UL Temperature Rating: 90°C
• Bulk Cable Weight: 44 lbs/1000 ft.
• Max. Recommended Pulling Tension: 250 lbs.
• Min. Bend Radius/Minor Axis: 2.750 in.

Applicable Specifications and Agency Compliance (Overall):
Applicable Standards and Environmental Programs:
• EU Directive 2011/65/EU (ROHS II): Yes
• EU CE Mark: Yes
• EU Directive 2000/53/EC (ELV): Yes
• EU Directive 2002/95/EC (RoHS): Yes
• EU RoHS Compliance Date (mm/dd/yyyy): 07/20/2011
• EU Directive 2002/96/EC (WEEE): Yes
• EU Directive 2003/11/EC (BFR): Yes
• CA Prop 65 (CJ for Wire and Cable): Yes
• MII Order #39 (China RoHS): Yes

Electrical Characteristics (Overall):
• Nom. Capacitance Conductor to Conductor (pF/ft): 33.000
• Nom. Capacitance Cond. to Other Conductor and Shield (pF/ft): 58.000
• Nom. Conductor DC Resistance @ 20°C (Ohm/1000 ft): 11.500
• Nominal Outer Shield DC Resistance @ 20°C (Ohm/1000 ft): 6.200
• Max. Operating Voltage - Non-UL: 600 V RMS
• Max. Recommended Current: 4 Amps/Conductor @ 25°C

Plenum/Non-Plenum:
• Plenum (Y/N): No
