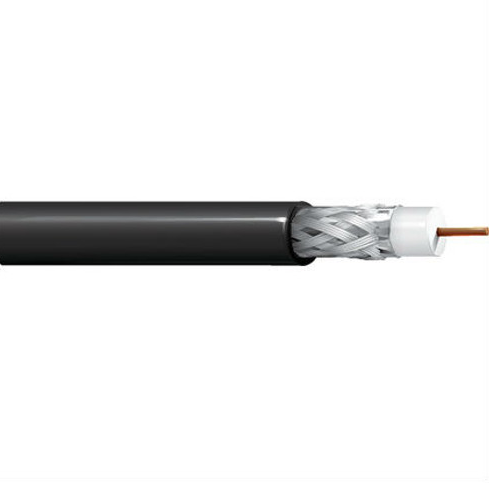

Belden 1694WB 18 AWG 1 Conductor Solid RG-6 75 Ohm Serial Digital Coax Cable

Belden 1694WB 18 AWG 1 Conductor Solid RG-6 75 Ohm Serial Digital Coax Cable

SKU: NES1694WB   Download PDF

Select a gauge:
  • Belden 1694WB 18 AWG 1 Conductor Solid RG-6 75 Ohm Serial Digital Coax Cable
Length: FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Now $1.36 /FT   Web pricing policy
BEFORE   Now $1.36 /FT Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Belden 1694WB 18 AWG 1 Conductor Solid RG-6 75 Ohm Serial Digital Coax Cable

Description:

Low Loss Serial Digital Coax, RG6 18 AWG solid bare copper conductor, foam HDPE core, Duofoil+95% tinned copper braid, waterblocking grease, PE jacket.

Insulation:

• Material: PE - Polyethylene (Foam)
• Nominal Diameter:  0.18 in
• Gas Injected

Outer Shield:

• Layer 1: Type Tape, Tri-Laminate (Alum+Poly+Alum) Material, Material Trade Name Duofoil, Coverage [%] 100%

• Layer 2: Type Braid, Tinned Copper (TC) Material, Coverage [%] 95%

• Outer Shield: Outer Shield Flooding Grease

Outer Jacket:

• Material: PE - Polyethylene
• Nom. Diameter: 0.274 in

Applications:

• SMPTE 424M 3 Gb/s HD-SDI 1080p

Specifications:

• Size (AWG): 18
• No. of Conductor: 1
• Stranding: Solid
• Nom. Diameter: 0.04 in
• Impedance: 75 Ohm
• RG Type: 6
• Conductor Material: BC - Bare Copper
• Part Number: 1694WB
