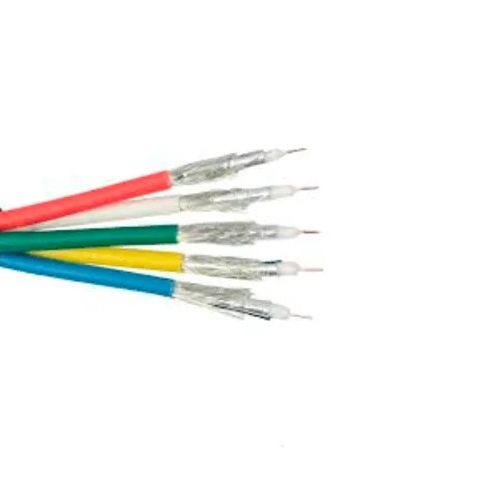

Belden 1505S5 20 AWG 5 Conductor Solid Bare Copper 300V Coax Cable

Description:-

20 AWG solid 0.032” bare copper conductors, gas-injected foam HDPE insulation, Duofoil (100% coverage) plus a tinned copper braid shield (95% coverage), individual PVC jackets.

Insulation:-

• Material: PE - Polyethylene (Foam)
• Nominal Diameter: 0.145 in
• Gas Injected

Inner Shield:-

• Layer: 1
• Shield Type: Tape
• Material: Tri-Laminate (Alum+Poly+Alum)
• Coverage: 100%
• Material Trade Name: Duofoil

• Layer: 2
• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 95%

Inner Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.235 in

Outer Jacket:-

• Material: Banana Peel (No Overall Jacket)
• Nom. Diameter: 0.629 in

Standards:-

• UL Voltage Rating: 300 V RMS
• Nominal Characteristic Impedance: 75 Ohm
• Operating Temperature Range: -35°C To +75°C

Applications:-

• RGB, VGA, SVGA, XGA, SXGA, UXGA, HDTV, LCD, Plasma, Digital Signage, Component Video, Video Mult, Animation, Special Effects, Suitable for use in
Risers

Specifications:-

• Size (AWG): 20
• No. of Conductor: 5
• Stranding: Solid
• RG Type: 59
• Nominal Diameter: 0.032 in
• Conductor Material: BC - Bare Copper
• Part Number: 1505S5
