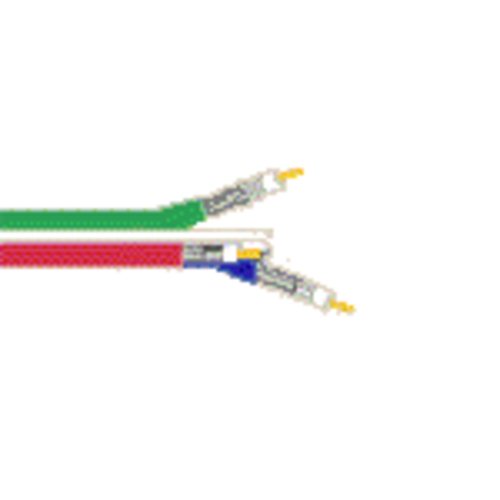

Belden 1505S3 Cable 20 AWG 3 Coaxes Precision Video Snake RG-59/U Coax Solid BC Individual PVC Jacket Cable

Belden 1505S3 Cable 20 AWG 3 Coaxes Precision Video Snake RG-59/U Coax Solid BC Individual PVC Jacket Cable

Select gauge from drop-down menu for prices:

Belden 1505S3 Cable 20 AWG 3 Coaxes Precision Video Snake RG-59/U Coax Solid BC Individual PVC Jacket Cable
Belden 1505S3 Cable 20 AWG 3 Coaxes Precision Video Snake RG-59/U Coax Solid BC Individual PVC Jacket Cable

Description:
• 20 AWG solid .032” bare copper conductors, gas-injected foam HDPE insulation, Duofoil® (100% coverage) plus a tinned copper braid shield (95% coverage), individual PVC jackets.

Insulation:
• Material: Gas-injected FHDPE - Foam High Density Polyethylene
• Diameter (in.): 0.145

Inner Jacket:
• Material: PVC - Polyvinyl Chloride
• Nominal Diameter (in.): 0.235

Outer Jacket:
• Material: Unjacketed

Usage (Overall):
Applications:
• RGB, VGA, SVGA, XGA, SXGA, UXGA, HDTV, LCD, Plasma, Digital Signage, Component Video, Video Mult, Animation, Special Effects, Suitable for use in Risers

Mechanical Charactertistics (Overall):
• Operating Tempeature Range: -35°C To +75°C
• UL Temperature Rating: 60°C
• Non-UL Temperature Rating: 75°C
• Bulk Cable Weight: 97 lbs/1000 ft.
• Max. Recommended Pulling Tension: 216 lbs.
• Min. Bend Radius/Minor Axis: 6.500 in.

Applicable Specifications and Agency Compliance (Overall):
Applicable Standards and Environmental Programs:
• NEC/(UL) Specification: CMR
• CEC/C(UL) Specification: CMG
• EU Directive 2011/65/EU (ROHS II): Yes
• EU CE Mark: Yes
• EU Directive 2000/53/EC (ELV): Yes
• EU Directive 2002/95/EC (RoHS): Yes
• EU RoHS Compliance Date (mm/dd/yyyy): 01/01/2004
• EU Directive 2002/96/EC (WEEE): Yes
• EU Directive 2003/11/EC (BFR): Yes
• CA Prop 65 (CJ for Wire and Cable): Yes
• MII Order #39 (China RoHS): Yes
• RG Type: 59/U

Electrical Characteristics (Overall):
• Nom. Characteristic Impedance (Ohm): 75
• Nom. Inductance (μH/ft): 0.107
• Nom. Capacitance Conductor to Shield (pF/ft): 16.2
• Nominal Velocity of Propagation: VP (%): 83
• Nominal Delay (ns/ft): 1.22
• Nom. Conductor DC Resistance @ 20°C (Ohm/1000 ft): 10.0
• Nom. Inner Shield DC Resistance @ 20°C (Ohm/1000 ft): 3.8
• Max. Operating Voltage - UL: 300 V RMS
• Sweep Test: Sweep tested 5 MHz to 4.5 GHz.

Flame Test:
• UL Flame Test: UL1666 Vertical Shaft

Suitability:
• Suitability - Indoor: Yes
• Suitability - Outdoor: Yes - Black only.
• Suitability - Burial: No

Plenum/Non-Plenum:
• Plenum (Y/N): No

technical specification:
awg 20
# coax 3
stranding solid
no. of conductors 3
conductor material bare copper
dia, (in.) 0.032
inner shield - type tape
inner shield - material aluminum foil-polyester tape-aluminum foil
overall cable- nominal dia, (in.) 0.502
belden cable part number 1505S3
