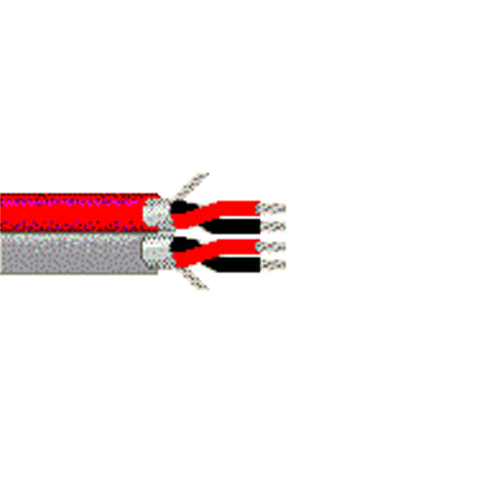

Belden 1504A 22 AWG 2 Pair 19x34 Stranding Tinned Copper 45 Ohm Audio Cable

Description:-

Audio Cable, CM-Rated, 2-22 AWG stranded tinned copper pairs with PVC insulation, Beldfoil shield, drain, PVC jacket, parallel construction.

Insulation:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.01 in (0.25 mm)
• Nom. Insulation Diameter: 0.050 in (1.3 mm)

Outer Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage [%]: 100%

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.020 in (0.51 mm)
• Nom. Diameter: 0.286 in

Standards:-

• UL Voltage Rating: 150 V RMS
• Nom. Characteristic Impedance: 45 Ohm
• Operating Temperature Range: -30°C To +60°C

Applications:-

• Applications for use with automatic stripping equipments; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); stereo audio; computer communication; panel wiring

Specifications:-

• Size (AWG): 22
• No. of Pairs: 2
• Stranding: 19x34
• Conductor Material: TC - Tinned Copper
• Part Number: 1504A
