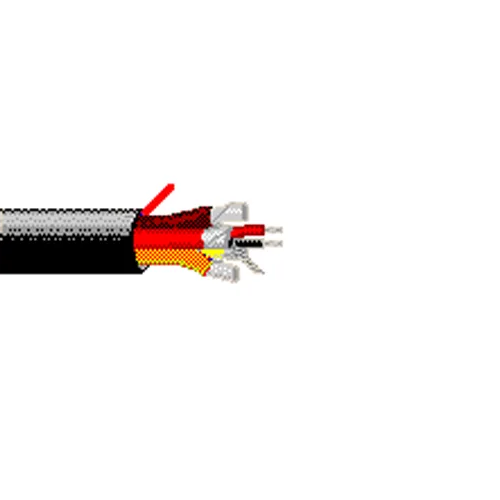

Belden 1427B Cable 22 AWG 24 Pairs Flexible Low Capacitance Audio Stranded 7x30 TC Shielded PVC Jacket Cable

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Belden 1427B Cable 22 AWG 24 Pairs Flexible Low Capacitance Audio Stranded 7x30 TC Shielded PVC Jacket Cable

Description:
• 22 AWG stranded (7x30) TC conductor, Datalene® insulation, individually shielded with Beldfoil® (100% coverage), numbered/color-coded PVC jackets, pair jackets and shields bonded so both strip simultaneously with automatic stripping equipment.

Insulation:
• Material: FHDPE - Foam High Density Polyethylene
• Wall Thickness (mm): 0.381
• Dia. (mm): 1.524

Inner Shield:
• Trade Name: Beldfoil®
• Type: Tape
• Material: Aluminum Foil-Polyester Tape

Inner Shield Drain Wire AWG:
• AWG: 22
• Stranding: 7x30
• Material: TC - Tinned Copper

Inner Jacket:
• Material: PVC - Polyvinyl Chloride
• Nom. Wall Thickness (mm): 0.381
• Nom. Dia. (mm): 3.8862

Outer Jacket:
• Material: PVC - Polyvinyl Chloride
• Nom. Wall Thickness (mm): 2.286
• Outer Jacket Ripcord: Yes

Pair Lay Length and Direction:
• Lay Length (mm): 44.45
• Twists (twist/m): 22.475

Mechanical Charactertistics (Overall):
• Operating Temperature Range: -20°C To +60°C
• Non-UL Temperature Rating: 60°C
• Bulk Cable Weight: 790.234 Kg/Km
• Max. Recommended Pulling Tension: 2913.570 N
• Min. Bend Radius/Minor Axis: 276.352 mm

Applicable Specifications and Agency Compliance (Overall):
Applicable Standards and Environmental Programs:
• EU Directive 2011/65/EU (ROHS II): Yes
• EU CE Mark: Yes
• EU Directive 2000/53/EC (ELV): Yes
• EU Directive 2002/95/EC (RoHS): Yes
• EU RoHS Compliance Date (mm/dd/yyyy): 01/01/2004
• EU Directive 2002/96/EC (WEEE): Yes
• EU Directive 2003/11/EC (BFR): Yes
• CA Prop 65 (CJ for Wire and Cable): Yes
• MII Order #39 (China RoHS): Yes

Electrical Characteristics (Overall):
• Nom. Inductance (μH/m): 0.6562
• Nom. Capacitance Conductor to Conductor (pF/m): 62.339
• Nom. Capacitance Cond. to Other Conductor & Shield (pF/m): 114.835
• Nominal Velocity of Propagation (VP %): 78
• Nom. Conductor DC Resistance @ 20°C (Ohm/km): 49.215
• Ind. Pair Nominal Shield DC Resistance @ 20°C: 34.779 Ohm/km
• Max. Operating Voltage - Non-UL: 300 V RMS
• Max. Recommended Current: 1.45 Amps/Conductor @ 20°C

Plenum/Non-Plenum:
• Plenum (Y/N): No
