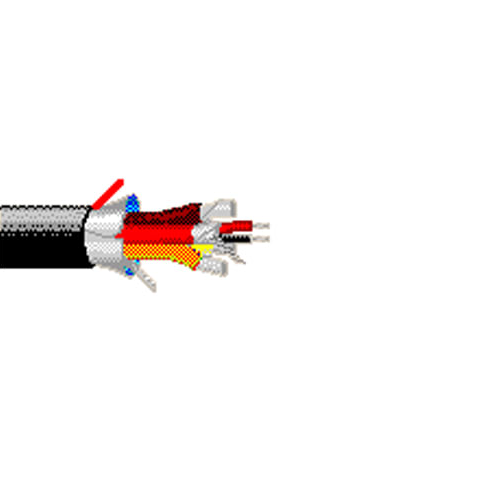

Belden 1411R 24 AWG 12 Pair 7x32 Stranding Tinned Copper 300V Audio Snake Cable

Description:-

Audio Snake Cable, 12-24 AWG tinned copper pairs, polyolefin insulation, individually shielded with Beldfoil bonded to numbered/color-coded PVC jackets so both strip simultaneously, overall Beldfoil shield, drain, PVC jacket.

Insulation:-

• Material: PP - Polypropylene
• Nom. Insulation Diameter: 0.04 in (1.0 mm)

Inner Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage [%]: 100%

Outer Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage [%]: 100%

Inner Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter:  0.113 in (2.87 mm)

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.555 in
• Ripcord: Yes

Standards:-

• Voltage Rating: 300 V RMS
• Nom. Characteristic Impedance: 50 Ohm
• Operating Temperature Range: -30°C To +75°C

Applications:-

• Multi-channel interconnect between audio equipment such as microphones, speakers, amplifiers, mixing consoles; Live events or studio sound; Analog audio

Specifications:-

• Size (AWG): 24
• No. of Pairs: 12
• Stranding: 7x32
• Conductor Material: TC - Tinned Copper
• Part Number: 1411R
