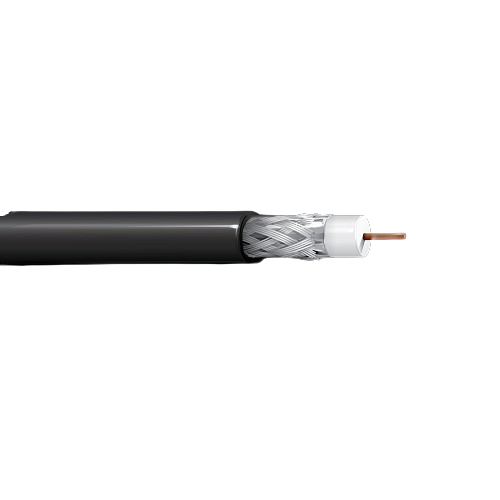

Belden 1371R 23 AWG 1 Conductor Solid Bare Copper 300V Serial Digital Coax Cable

Description:-

Video Cable, Riser-CMR, sub-minature RG59, 23 AWG solid bare copper, foam polyethylene insulation, Duofoil; 85% tinned copper braid, PVC jacket.

Insulation:-

• Material: PE - Polyethylene (Foam)
• Nominal Diameter: 0.102 in

Outer Shield:-

• Layer: 1
• Shield Type: Tape
• Material: Tri-Laminate (Alum+Poly+Alum)
• Material Trade Name: Duobond II
• Coverage: 100%

• Layer: 2
• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 85%

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.16 in

Standards:-

• UL Voltage Rating: 300 V RMS
• Nominal Characteristic Impedance: 75 Ohm
• Operating Temperature Range: -30°C To +75°C

Specifications:-

• Size (AWG): 23
• No. of Conductor: 1
• Stranding: Solid
• Nominal Diameter: 0.023 in
• Conductor Material: BC - Bare Copper
• Part Number: 1371R
