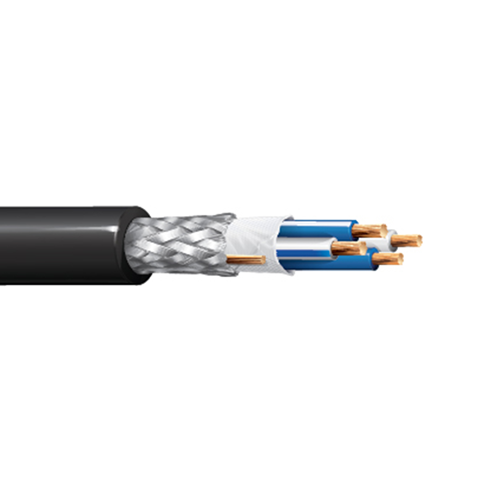

Belden 1172A 26 AWG 4 Conductor 30x40 Stranding Bare Copper Microphone Cable

Description:

Microphone Cable, Star Quad, 4 Conductor 26 AWG (30 x 40) High Conductivity Bare Copper, PE Insulation, 95% Tinned Copper French Braid Shield, PVC Jacket, Flexible.

Insulation:

• Material: PE - Polyethylene
• Nominal Diameter: 0.013 in (0.33 mm)
• Nom. Insulation Diameter: 0.045 in (1.1 mm)

Outer Shield:

• Shield Type: French Braid
• Material: Tinned Copper (TC)
• Coverage: 95%
• Paper tape under braid with drain over tape

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.031 in (0.79 mm)
• Nom. Diameter: 0.190 in (4.83 mm)
• Overall Cable Diameter (Nominal): 0.190 in (4.83 mm)

Applications:

• Microphone, Low Noise for high-EMI environments; Line level balanced analog audio
