Service Wire 14 AWG 37 Conductors Jacket MC XHHW-2 Zero Halogen Limited Smoke 600V Copper Cable AANH14/37
Service Wire 14 AWG 37 Conductors Jacket MC XHHW-2 Zero Halogen Limited Smoke 600V Copper Cable AANH14/37

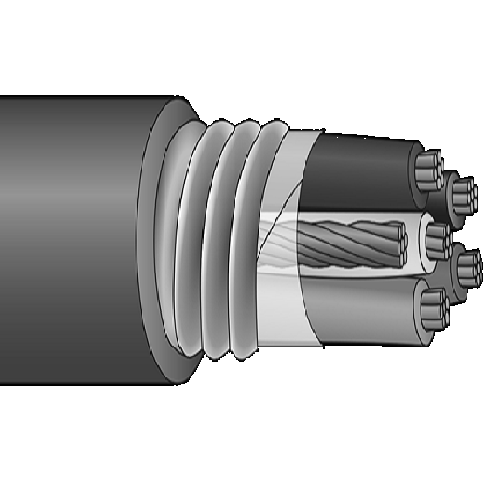

Description: Conductors are stranded copper, insulated with heat and moisture resistant crosslinked polyethylene (type XHHW-2), phase identified and cabled with a **bare copper ground conductor. Cable core is covered with binder tape and aluminum or galvanized steel interlocked armor, with an overall zero halogen, limited smoke, zero lead jacket.

Application: Suitable for use in hazardous locations: Class I - Div 2, Class II - Div 2

Standards:
• UL1569 ICEA S-95-658/NEMA WC-70
• Flame Rated: IEEE 383 (70,000 BTU)
• IEEE 1202/CSA FT-4
• UL 1685 and UL 1581
• Two-hour Firewall
• Temperature Rated at 90°C Wet/Dry
• Cold Temperature Rated at -40ºC
• Sunlight Resistant
• Direct Burial1
• Color Code: K-2 (other colors available upon request)
• Zero Halogen, Limited Smoke Jacket
• RoHS Compliant

technical specification:
grounding conductor (awg)
14
number of conductors 37
diameter over armor (inch) 1.15
jacket thickness (mils) 50
approximate overall diameter (inch) 1.25
net weight (lb/1000') 964
ampacity* (30°c ambient) 90°c wet/dry
10
service wire part number AANH14/37
