• Quadruplex Aluminum Service Drop Cable

    Product Details

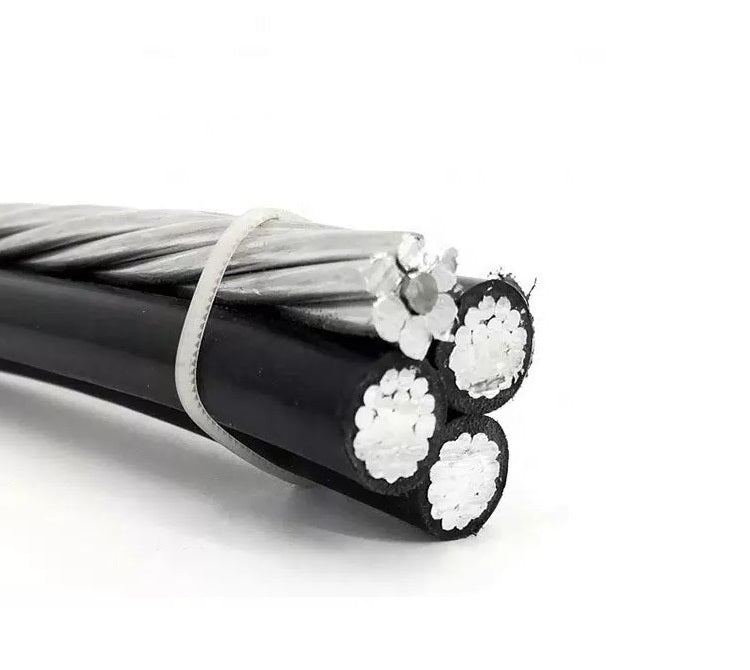

    The Quadruplex Aluminum Service Drop Cable is a 4-conductor assembly of aluminum alloy 1350-H19 conductors.  1350-H19 is a 99.5% aluminum alloy with added metals to increase the cable’s conductivity, strength, and resistance to corrosion.  The assembly includes 3 phase conductors and one neutral messenger wire that is available in 6201-T81 aluminum alloy, all aluminum or aluminum-clad steel reinforced.  The conductors are insulated with a polyethylene jacket that protects the conductors from excessive heat, dryness, moisture, or other corrosive elements.

    The Quadruplex Aluminum Service Drop Cable typically delivers power from a pole-mounted transformer to an individual residence or building where the service entrance cable connects with the service head.  The Quadruplex Aluminum Service Drop Cable can be used in a wide range of climates with the ability to function in temperatures between 75°C and 90°C, depending on the insulation.  The conductors are insulated with the option of a standard polyethylene or a crosslinked polyethylene.  For installation in mild climates where weather will not likely be a factor, standard polyethylene insulation can resist heat up to 75°C.  For harsher regions such as tropical islands or arid desert locations, the crosslinked polyethylene can handle temperatures up to 90°C.

    Code Word Phase Conductor Bare Neutral Messenger Weight Per 1000 ft. (lbs.) Allowable Ampacity+
    Size (AWG or kcmil) Stranding Insul. Thick. (mils) Size (AWG) Strand- ing Rated Strength (lbs.) XLP POLY XLP POLY
    6201 AAAC 6201 ALLOY FULL NEUTRAL MESSENGER
    Bay 6 1 45 6 7 1110 137 137 75 60
    French Coach 6 7 45 6 7 1110 146 146 75 60
    German Coach 4 1 45 4 7 1760 205 205 100 80
    Arabian 4 7 45 4 7 1760 217 217 100 80
    Belgian 2 7 45 2 7 2800 328 328 135 105
    Shetland 1/0 9 60 1/0 7 4460 519 519 180 140
    Thoroughbred 2/0 11 60 2/0 7 5390 639 639 205 160
    Trotter 3/0 17 60 3/0 7 670 789 789 235 185
    Walking 4/0 18 60 4/0 7 8560 77 977 275 210
    *Code words for XLP insulated products are formed by adding "/XLP" to the conventional code words above (e.g.-Bay/XLP).+Conductor temperature of 90°C for XLP, 75°C for Poly; ambient temperature of 40°C; emissivity 0.9; 2 ft./sec. wind in sun.++Designated sizes are: ACSR 6/1 diameter equivalent and AAC with equivalent resistivity per ASTM B-399 for 6201.



    Code Word Phase Conductor Bare Neutral Messenger Weight Per 1000 ft. (lbs.) Allowable Ampacity+
    Size (AWG or kcmil) Stranding Insul. Thick. (mils) Size (AWG or kcmil) Strand- ing Rated Strength (lbs.) XLP POLY XLP POLY
    AAC NEURAL-MESSENGER
    Clydesdale 4 1 45 4 7 881 198 198 100 80
    Pinto 4 7 45 4 7 881 211 211 100 80
    Mustang 2 7 45 2 7 1350 318 318 135 105
    Criollo 1/0 9 60 1/0 7 1990 503 503 180 140
    Percheron 2/0 11 60 2/0 7 2510 619 619 205 160
    Hanovarian 3/0 17 60 3/0 19 3310 764 764 235 185
    Oldenburg 4/0 18 60 4/0 19 4020 945 945 275 210
    Lippizaner 336.4 19 80 336.4 19 6146 1519 1519 370 280
    *Code words for XLP insulated products are formed by adding "/XLP" to the conventional code words above (e.g.-Bay/XLP).+Conductor temperature of 90°C for XLP, 75°C for Poly; ambient temperature of 40°C; emissivity 0.9; 2 ft./sec. wind in sun.



    Code Word Phase Conductor Bare Neutral Messenger Weight Per 1000 ft. (lbs.) Allowable Ampacity+
    Size (AWG or kcmil) Stranding Insul. Thick. (mils) Size (AWG) Strand- ing Rated Strength (lbs.) XLP POLY XLP POLY
    ACSR NEUTRAL-MESSENGER
    Morochuca 6 1 45 6 6/1 1190 145 145 75 60
    Chola 6 7 45 6 6/1 1190 153 153 75 60
    Morgan 4 1 45 1 6/1 1860 217 217 100 80
    Hackney 4 7 45 4 6/1 1860 229 229 100 80
    Palomino 2 7 45 2 6/1 2850 347 347 135 105
    Costena 1/0 9 60 1/0 6/1 4380 549 549 180 140
    Grullo 2/0 11 60 2/0 6/1 5310 677 677 205 160
    Suffolk 3/0 17 60 3/0 6/1 6620 837 837 235 185
    Appaloosa 4/0 18 60 4/0 6/1 8350 1038 1038 275 210
    Gelding 336.4 19 80 4/0 6/1 8350 1494 1494 370 280
    Bronco 336/4 19 80 336.4 18/1 8680 1568 1568 370 280
    *Code words for XLP insulated products are formed by adding "/XLP" to the conventional code words above (e.g.-Bay/XLP).+Conductor temperature of 90°C for XLP, 75°C for Poly; ambient temperature of 40°C; emissivity 0.9; 2 ft./sec. wind in sun.
