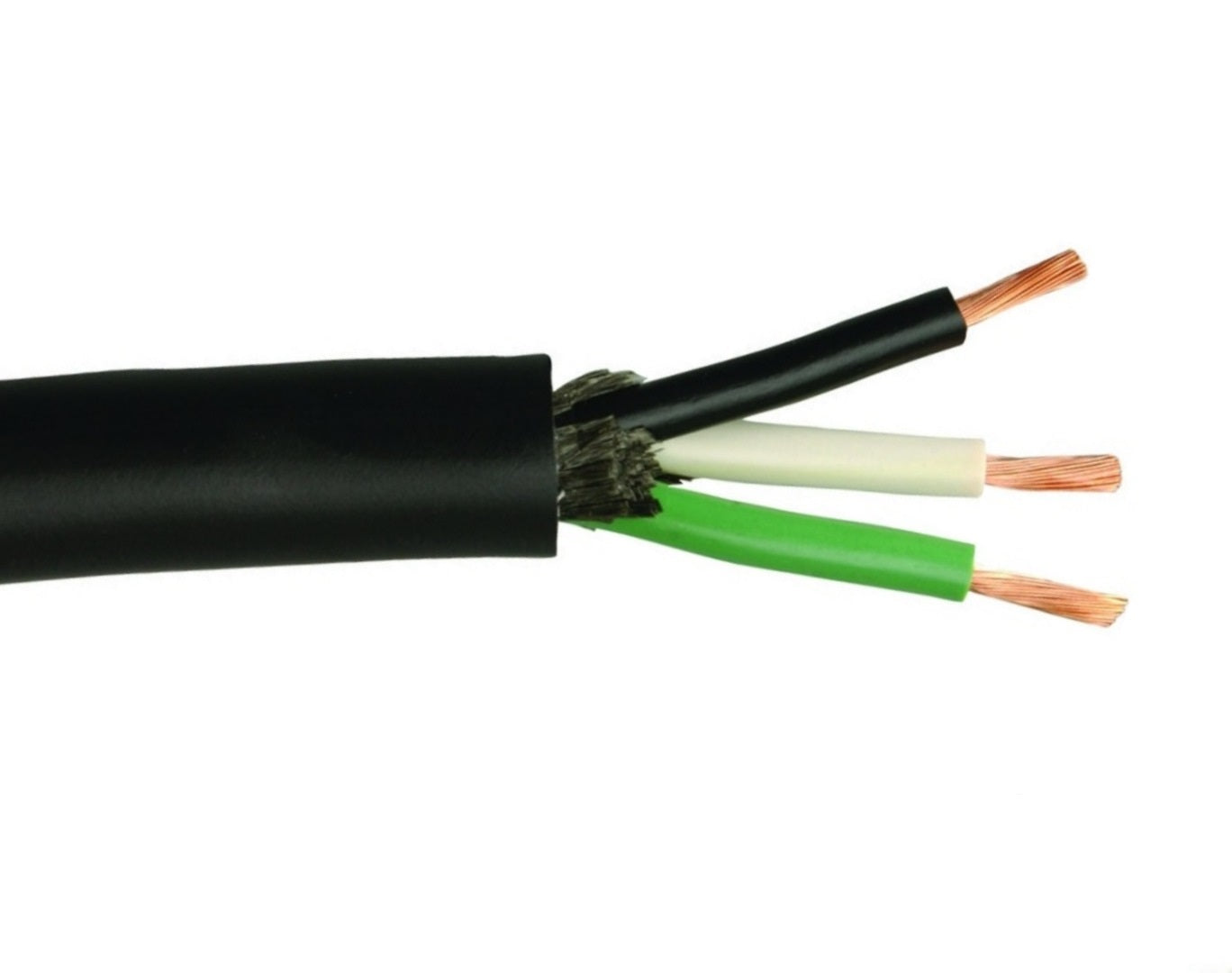

6/3 SEOOW Cable UL CSA 600V

6/3 SEOOW Cable UL CSA 600V

Regular price $6.99 $5.20 Sale /per Foot

Description:
6/3 SEOOW Cord is a flexible industrial cable rated 600 volts and works within a temperature range of between -50°C and 105°C in dry and wet environments. This cable is water-tight and therefore can function as a submersible cable, Ampacity of this cable is 45 Amp.

Applications:
This is a service wire that’s widely used in portable applications requiring up to 600 volts. Its portability, flexibility and versatility makes it an ideal cord for wiring tools and machines. Most common applications include; washing machines, industrial machinery, construction sites and cranes. For more usability, the cable is tailored for use with heavy duty motors and industrial control systems.

Conductors:
• Flexible stranded bare copper in accordance with ASTM B 174
• Size ranges between 18 AWG through to 2 AWG

Insulation:
The conductors are insulated using as thermoplastic elastomer (TPE) which is brilliantly colored for easy identification.

Jacket:
SEOOW portable cord has a black thermoplastic elastomer jacket

Features:
• Oil, water, sunlight, ozone, and chemical resistant jacket and insulation.
• Light weight and durable.
• Weather and water resistant.
• Submersible rated.
• 600 volt power cable.

Standards:
• OSHA Acceptable
• National Electric Code Article 400 as a flexible service cord
• Federal specification J-C-580B
• Underwriters Lab standard 62
• MSHA
• CSA 22.2 No. 49
• NEC 501.140 Class 1 Div.2

Technical Specifications:
Number of Conductors in Cable: 3
Nominal Jacket Thickness (Inches): 0.060
Nominal Insulation Thickness (Inches): 0.050
Size AWG: 6
Stranding: 133 x 27
Diameter Complete Cable (O.D.) (Inches): 0.805
Weight Per 1000ft Total (Lbs.): 470
Allowable Ampacity 90C (Amps): 45
